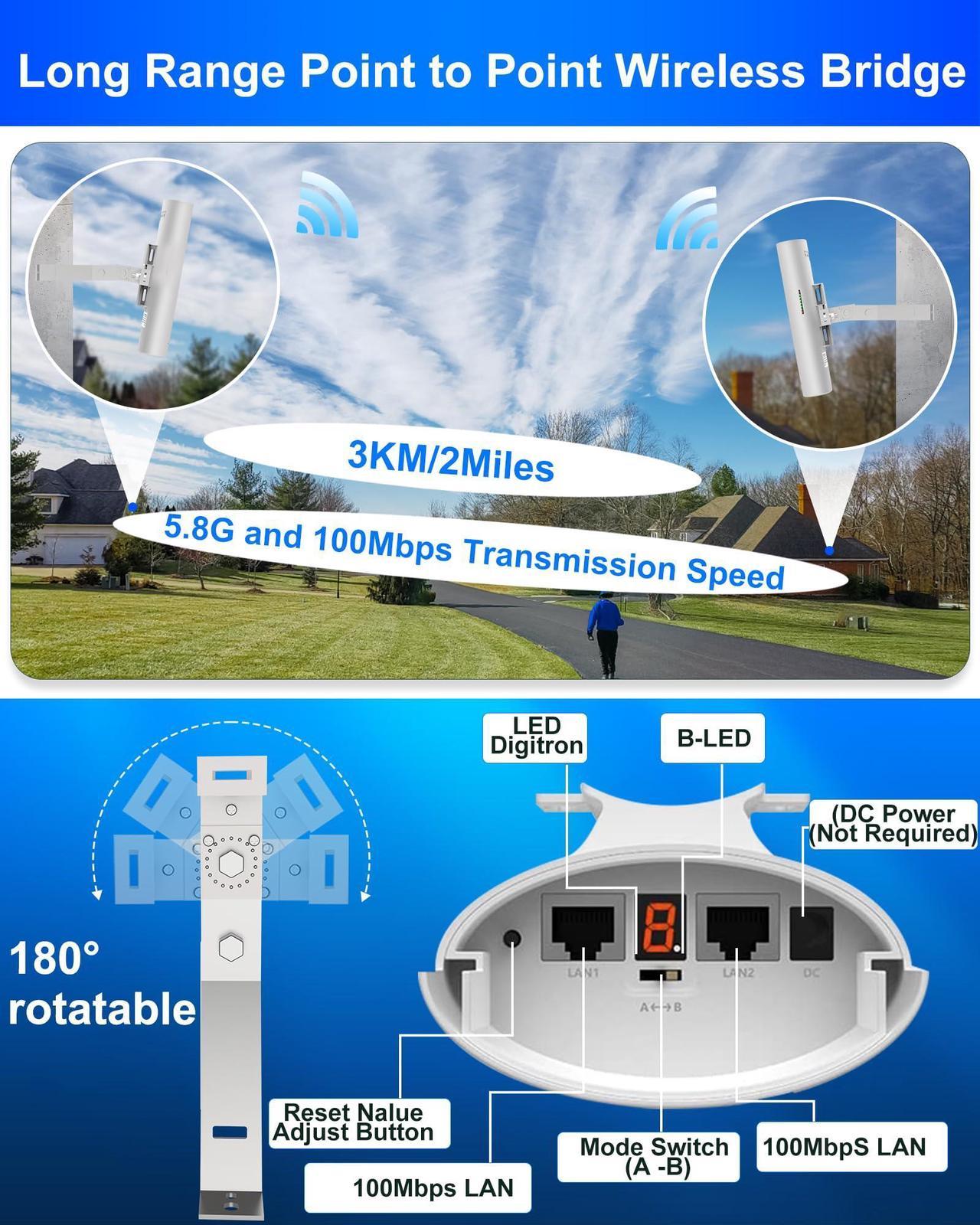

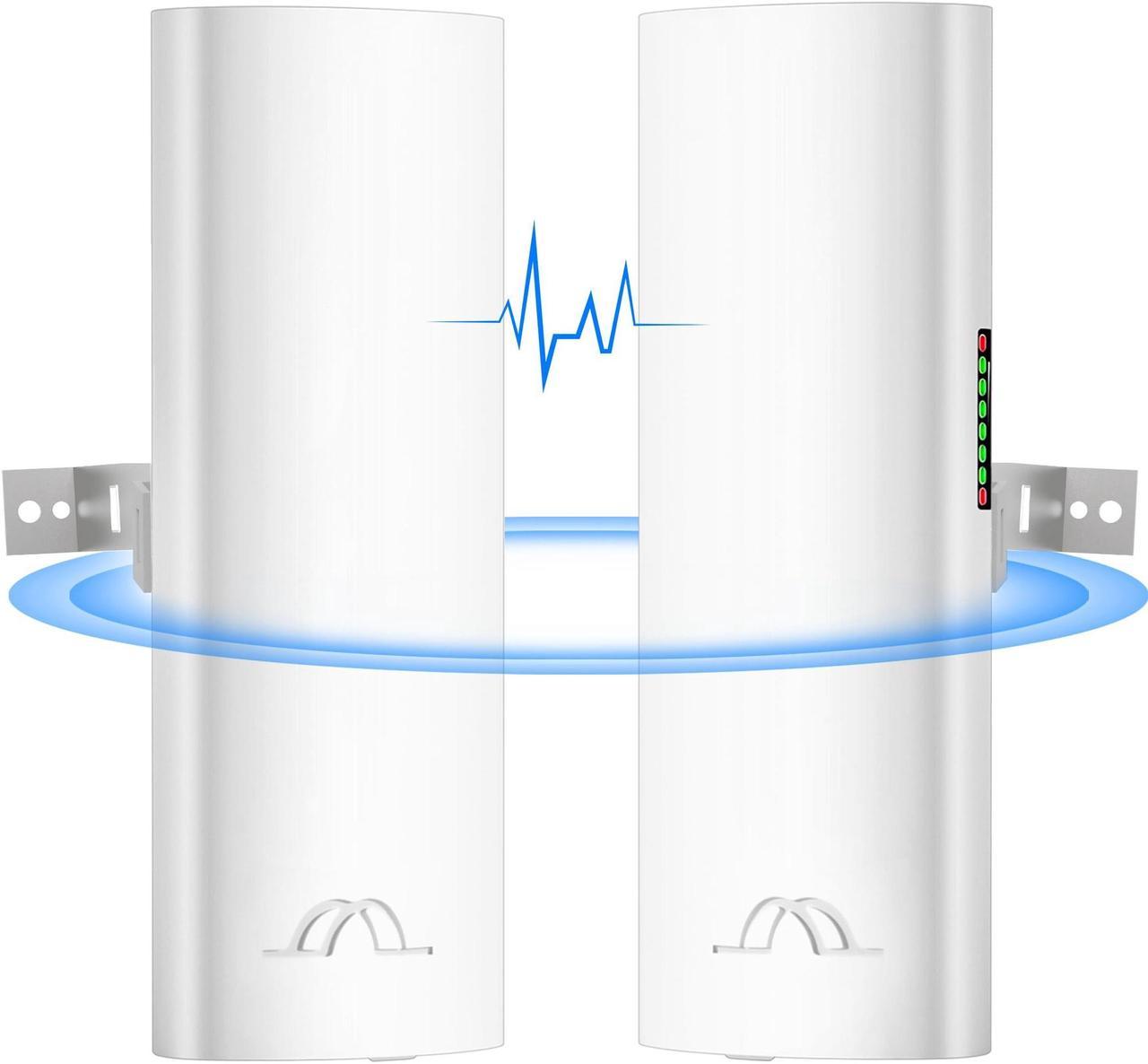

5.8G Wireless Bridge with Pole/Wall Mount Bracket – Extend Starlink Internet Access Outdoor, 2 Miles Point to Point WiFi Bridges with PoE Adapter, 2-Pack
$ 152.00
5.8GHz / 300Mbps High-Speed Transmission: This wireless bridge utilize advanced 5.8GHz 300Mbps wireless technology and are equipped with a 12dBi high-gain antenna. With a maximum transmission range of up to 2 miles (Barrier-free), they offer reliable and fast connectivity. The built-in 100Mbps LAN port ensures seamless wired network speed, making it ideal for point-to-point internet access sharing, remote IP camera surveillance, or remote network Wi-Fi access.
PTMP Pre-programmed for Easy Setup: Simply connect both bridges to the PoE adapters using Ethernet cables, and the system will automatically power on. After waiting for 1 minute, the equipment will pair and establish a connection. The “Link” green LED indicator confirms successful pairing. This feature simplifies installation and eliminates the need for complex configurations, perfect for extending internet access to locations like garages, barns, stores, and warehouses using 5.8GHz wireless transmission instead of c
Parameters
Model: CPE370
Wired interface: 10/100Mbps LAN*2
Data rate:
11a: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps
11n: 7.2M, 14.4M, 21.7M, 28.9M, 43.3M, 57.8M, 65M, 72.2M, 14.4M, 28.9M, 43.3M, 57.8M, 86.7M, 115.6M, 130M, 144.4M bps
Power supply: POE 24V 0.5A
Waterproof: Support
Dust-proof: Support
Working temperature: -4~158
Storage temperature: -22~176
Item Dimensions: 6.88 ”* 3.62 ”* 2.36 ”
Item Weight: 23 oz
Package Included:
2 x CPE370 Wireless Bridge 2 x PoE Power Adapter 2 x Network Cable 2 x Metal Hoop 1 x User Manual
Related products
-
Read morePackage Includes
1Starlink Mini Tripod
1Starlink Mini Tripod Adapter
About this item;
**Durable Aluminum Alloy Construction**- This tripod is crafted from high-quality aluminum alloy, providing a lightweight yet robust base for your equipment. The sturdy construction ensures long-lasting performance and stable support, even on uneven surfaces.
**Enhanced Stability with Ground Stakes**- This tripod includes three removable ground stakes that can be attached to the tripod legs, providing additional stability on soft surfaces. These stakes securely anchor the tripod, making it ideal for outdoor use, such as camping, hiking, or outdoor photography.
**Adjustable Height for Flexible Positioning**- This tripod features an adjustable center pole, allowing you to modify the height of your mounted device. The tripod extends to a maximum height of 6.7″ with the legs fully open and can be extended for an even higher view, providing flexible options for optimal positioning in any setting.
**Compact and Portable Design**- The tripod is designed to be compact and easy to carry. The tripod legs and ground stakes can be easily disassembled and stored within the tripods tube for convenient portability. The compact design and lightweight construction make it easy to transport and store, making it an ideal accessory for travel and on-the-go use.
**Quick and Simple Installation**- This tripod is designed for easy and tool-free setup. Simply screw the legs onto the main body and attach the center pole. The intuitive design allows you to quickly assemble and disassemble the tripod in seconds.
**Versatile and Stable Mounting**- This tripod provides a versatile and stable platform for various devices, including cameras, lights, and the Starlink Mini. The tripod features a standard 1/4″ screw mount that is compatible with various mounting adapters, ensuring secure and reliable positioning of your equipment.
Spec
Part No MINI-BR14
Tripod Height
0.17M / 6.7inches
Tripod Material Aluminum Alloy
Tripod Adapter Material Aluminum Alloy
Color Black
Compatible Starlink MINI -
Read moreAbout this item;
**Precision Fit for Starlink Mini**- This tripod adapter is tailor-made for the Starlink Mini dish antenna. Its precise design ensures a secure and stable fit, allowing for easy attachment to various mounting solutions. The sleek white fiberglass material complements the Starlink Mini’s aesthetic.
**Universal Tripod Compatibility**- This adapter features a standard 1/4″-20 threaded insert, making it compatible with a wide variety of common tripods. This versatility broadens your mounting options, allowing you to use your existing tripod, clamp mount, gutter mount, or other compatible accessories to securely position your Starlink Mini.
**Durable and Lightweight Construction**- This Starlink Mini tripod adapter is crafted from premium fiberglass material. This material offers excellent strength and durability while remaining lightweight and resistant to corrosion, providing long-lasting performance and stability for your Starlink Mini.
**Effortless Tool-Free Installation**- The adapter easily attaches to your Starlink Mini dish with a straightforward installation process that requires no tools. Just align the adapter with the mounting point on the dish and secure it in place.
**Enhanced Mounting Flexibility**- This adapter expands the ways you can mount your Starlink Mini. It’s ideal for various applications, whether you need a temporary setup for camping, RVing, or other outdoor activities or a more permanent installation on a rooftop, boat, or other structure.
Spec
Part No MINI-DM1
Material Fiberglass
Color White
Compatible Starlink Mini -
Read moreAbout this item;
【Convenient Length Options】- This replacement DC power cable for Starlink Mini is available in 6.5FT (2M), 16.4FT (5M), and 32.8FT (10M) lengths. These options provide flexibility for various installation scenarios, ensuring you have the ideal cable length for your Starlink Mini setup.
【Safe and Reliable Power Delivery】- This DC power cable utilizes high-quality 18AWG wire, adhering to original factory standards for reliable and secure connections. It ensures safe and rapid power transmission for optimal Starlink Mini performance.
【Durable Weatherproof Design】- Constructed with PVC and copper materials, this Starlink DC power cable features a waterproof design for enhanced durability. The cable withstands exposure to rain, dust, and other elements, making it suitable for both indoor and outdoor installations.
【Effortless Plug-and-Play Connectivity】- This Starlink Mini DC power cable offers hassle-free plug-and-play functionality, simplifying the installation process. Simply connect the cable to your Starlink Mini and power source for a quick and easy setup, with no complicated configuration required.
【Simple and Convenient Installation】- Designed for user-friendliness, this cable acts as a direct connector between your Starlink Mini dish and power supply. Simply plug the respective ends into their corresponding interfaces for a quick and straightforward installation process.
Spec
Part No MINI-DC
Color Grey
Wire Size 18AWG Each Cord
Wire Length 6.5FT/2M, 16.4FT/5M, 32.8FT/10M
Compatible Equipment Starlink Mini
Connector Gender Male To Male
Connection Type DC to DC -
Read moreNote: The included tripod adapter is specially designed for this kickstand and has a smaller diameter than the official Starlink pipe adapter.
Package Includes

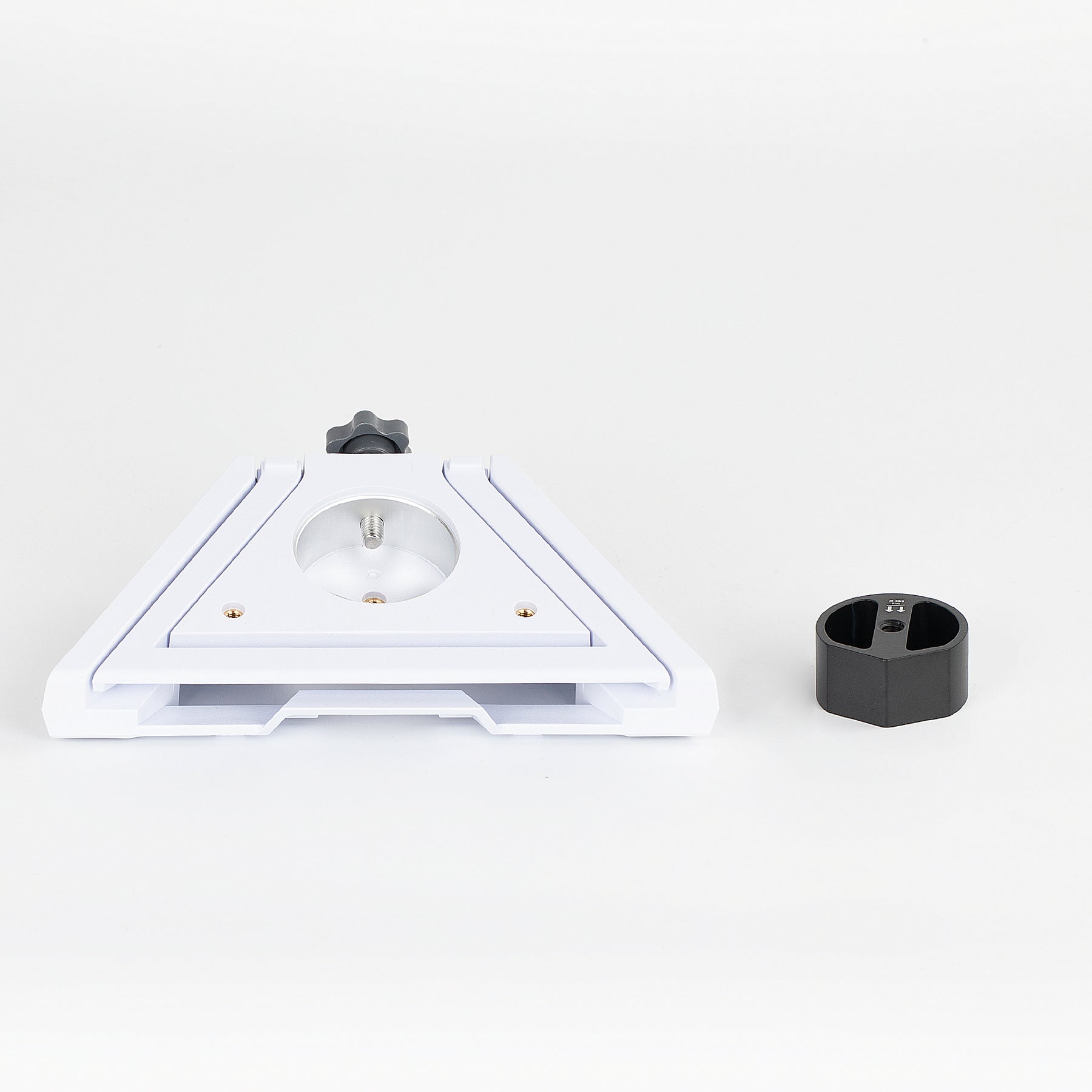

1Starlink Mini One-Piece Kickstand and Pipe Adapter
